U-shaped Toslink and MiniPlug Optical Cables
 Short Application
We can make extremely short Toslink and MiniPlug optical cables for "U"- shaped type applications where optical transmitters/receivers are in close proximity to each other.

Samples of these applications can be seen on Head-Fi forum as posted by one of our customers (scroll down)

Short MiniPlug to Toslink 5.0mm cable		 The sample on the top left with the 2.2mm cable is 9.5cm (3.75in)  long "tip to tip".  If bent in a "U" shape it is suitable for "center plug" to "center plug" ports, distance 12mm to 22mm apart.



The sample on the bottom left is the 5mm cable, 10.5cm (4.1in) long "tip to tip".  If bent in a "U" shape it is suitable for "center plug" to "center plug" ports, distance ~14mm to ~17mm apart.
U-shape Toslink MiniPlug 5.0mm cableShort Toslink with iBasso D1 and iHP-140

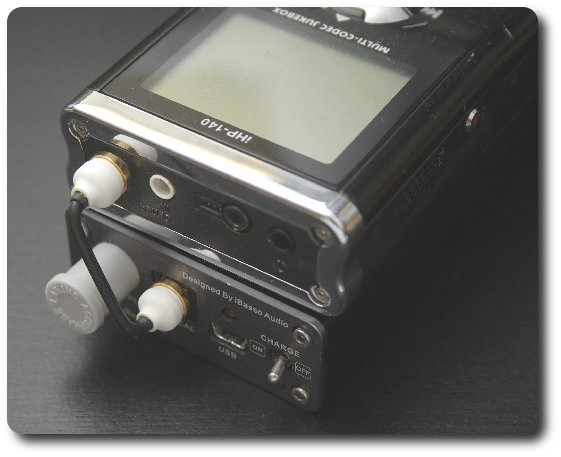

Sample of application connecting  iBasso D1 and iHP-140 (additional images below)
Image courtesy of Mr. Yoshihiro Sasaki of Japan
 When bent into a "U" shape the connectors are parallel to each other
- with a 2.2mm cable, the connectors will be parallel to each other at a distance of 12mm to 22mm.

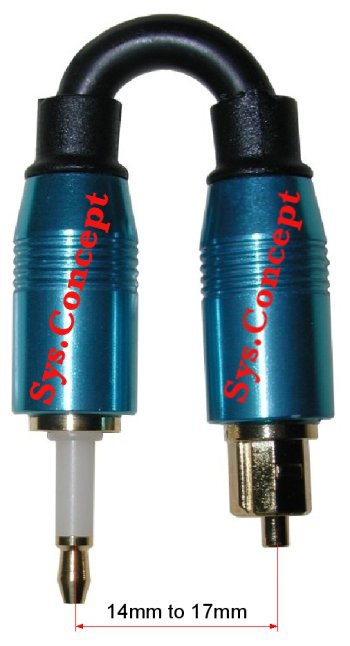

- with a 5.0mm cable, the connectors will be parallel to each other at a distance of 14mm to 17mm.

These are the shortest cables we can make with shells.  If we remove the shells the distance from "center to center" can  be 8.1mm.

These are just examples.

Distances between the centers are regulated by the length of the cables and are customized.
Toslink two Toslink 2.5cm center-to-center MiniPlug to MiniPlug 2.5cm Center-to-Center

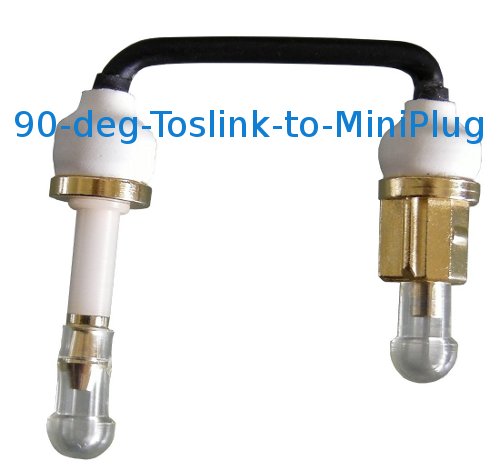

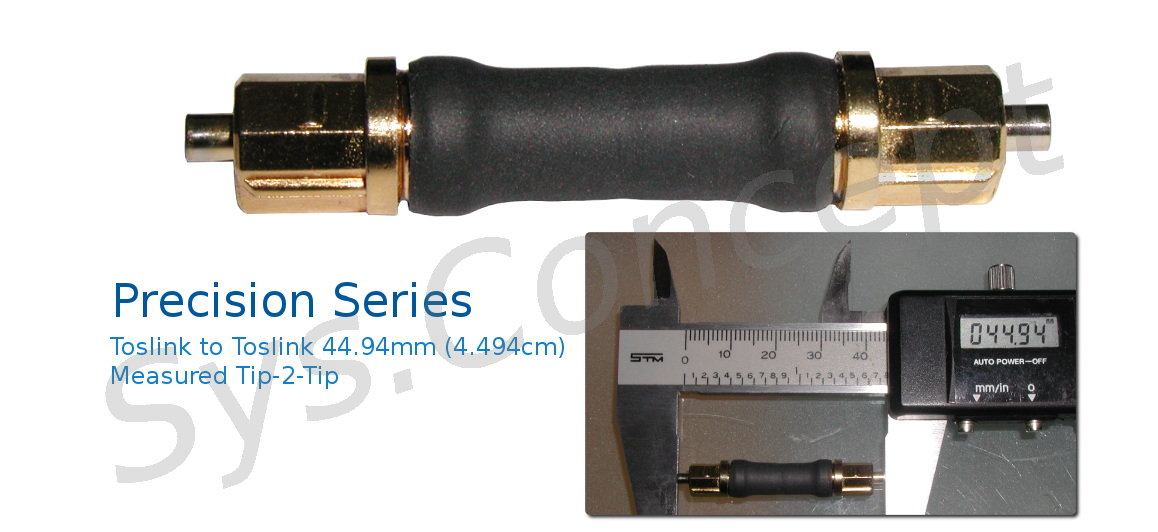

Precision Series Short Toslink     90-deg-Toslink-to-MiniPlug








How to Order:

Provide a picture showing front ports with a ruler beside it, like on a picture below.
We will calculate cable length and angle (if needed) from the picture,  good example of a picture below:

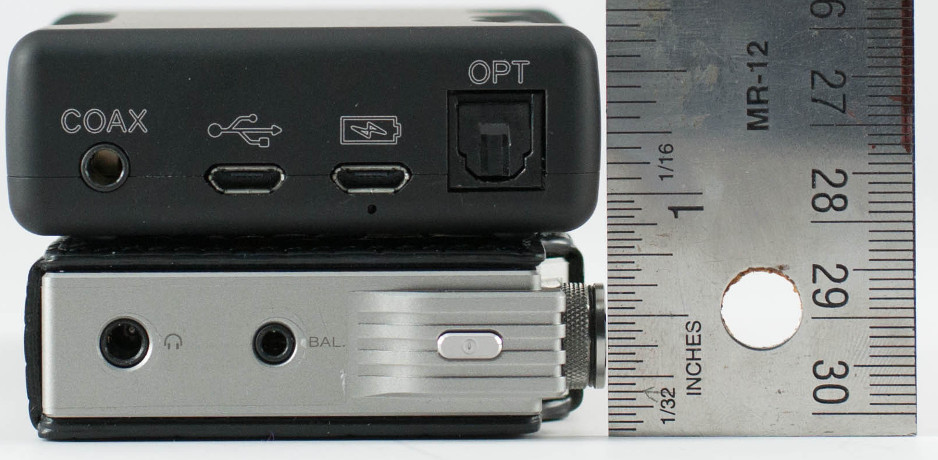

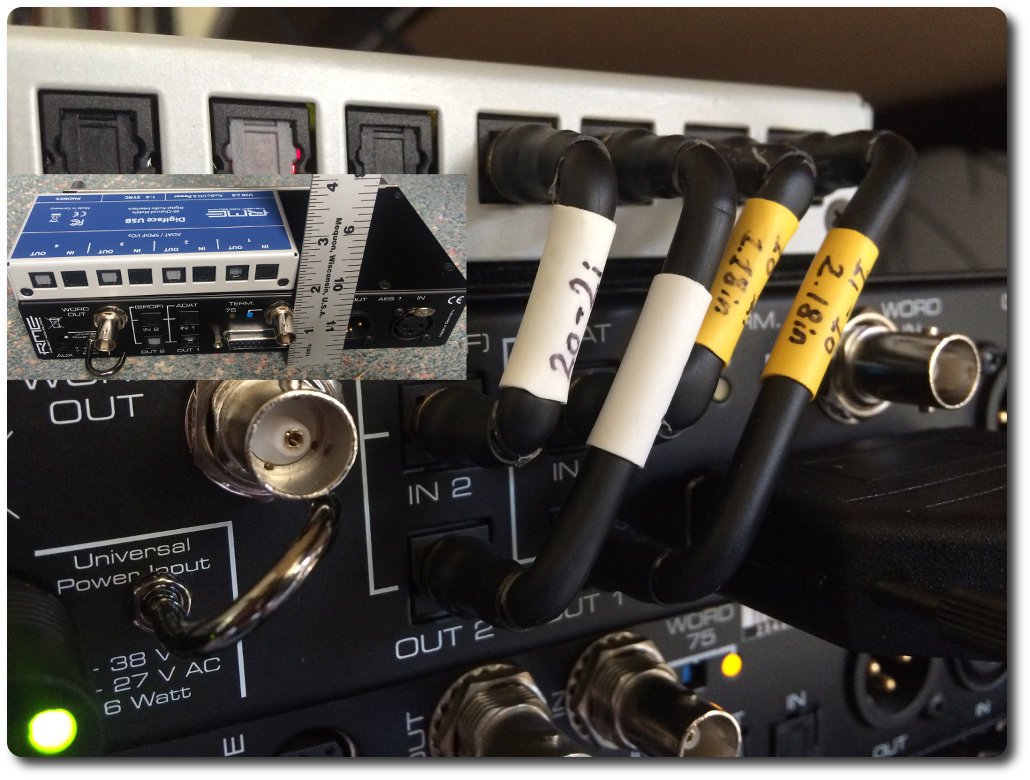

 Chord Mojo, AK1200ii showing front ports wtih ruler



How short can they be:

a) MiniPlug to MiniPlug  / Toslink to MiniPlug / Toslink to Toslink cables with color shells for a "U" shaped cable (* see note below):
- minimum distance from center to center:  11mm (0.43in) /  cable length: Tip-2-Tip 8cm; the shells will be touching each other.  (with shells you can not get any closer)
*Note:  With such a short distance, 11mm,  we might remove the boot for maximum flexibility.

In an example above 11mm center to center the assembly length will be:
- Toslink-to-Toslink (Tip-2-Tip) 8cm (3.15in)
- Toslink-to-MiniPlug (Tip-2-Tip) 8.7cm (3.44in)
- MiniPlug-to-MiniPlug (Tip-2-Tip) 9.5cm (3.77in)
* These length are for information only, for "U" shape application do not measure/provide cable length unless you know what you are doing, provide distance Center Port to Center Port.
b.) Extreme: shell is REMOVED (removing the shell does not impact the transmission).

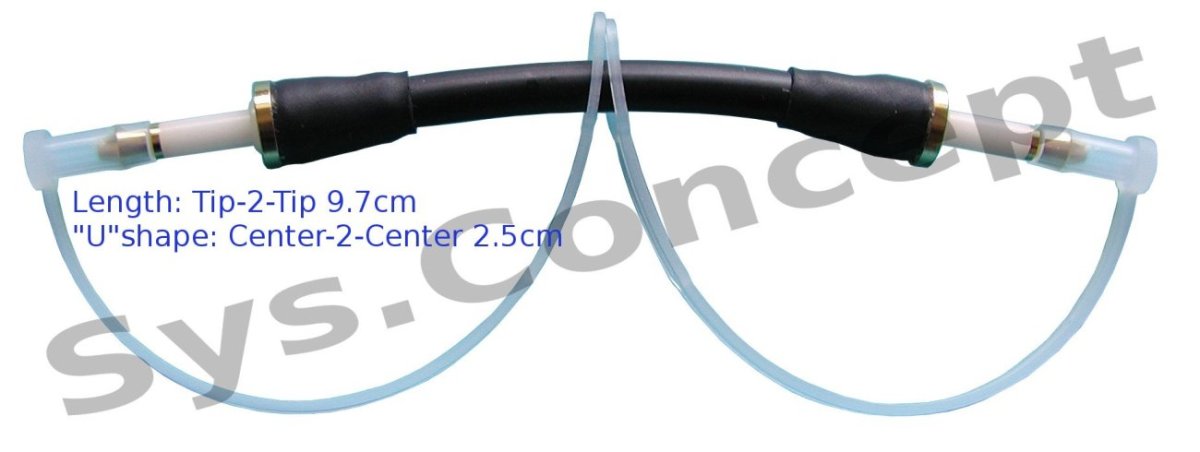

- distance from center to center:  ~8.1mm (0.31in).  This assembly will be 7cm (2.75in) long.
Nobody can make such cables shorter than this :-)
Below pictures and translation are courtesy of Mr. Yoshihiro Sasaki of Japan and other customers

購 入法:
写真のような"U" 字の最短ケーブルを購入するためにはまず中心間距離(center to center )を実測してください。
たとえばiBasso D1ならば30mmでHeadroom Micro portable 2007ならば25mmです。
そしてプラグのカバー(shell)のありなしを指定します。カバーは音質には影響しません。
* カバーありの場合、カバーの色を指定します。最短の中心間距離は11mm(このときプラグ同士がくっつく)になります。この場合の全体の長さは8.0cm になります。(長さは端末が角かミニかで異なります)
* カバーなしの場合、"remove shell"と書き添えてください。また最短の中心間距離は8.1mmとなります。この場合の全体の長さは7.0cmになります。
こんな最短ケーブルを作成できるのは世界でも我々だけです！
Towlink to Toslink with and wothout shellsHeadroom Micro Portable 2007 and iHP-140 with MiniPlug to MiniPlug 2.5cm c2c

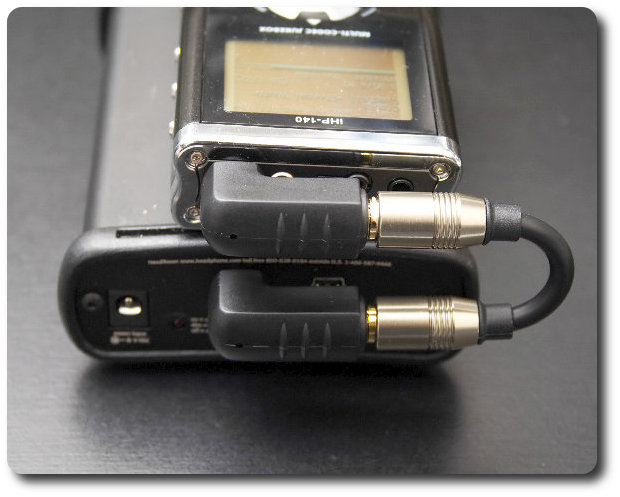

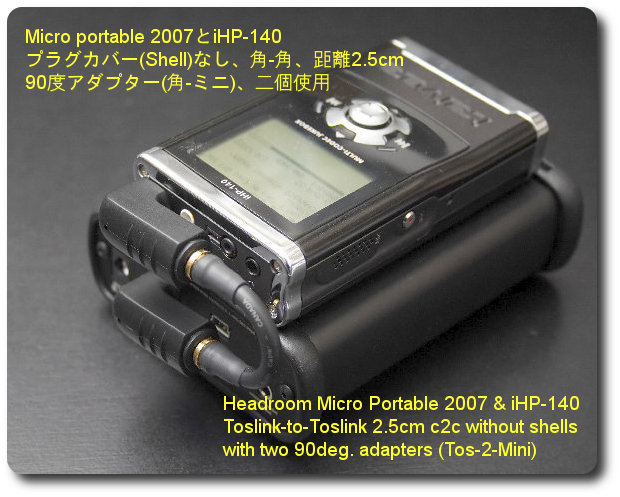

Headroom Micro Portable 2007 and iHP-140 Toslink to Toslink 2.5cm without shells and two 90deg adaptersHeadroom Micro Portable 2007 and iHP-140 Toslink to Toslink 2.5cm without shells and two 90deg adapters

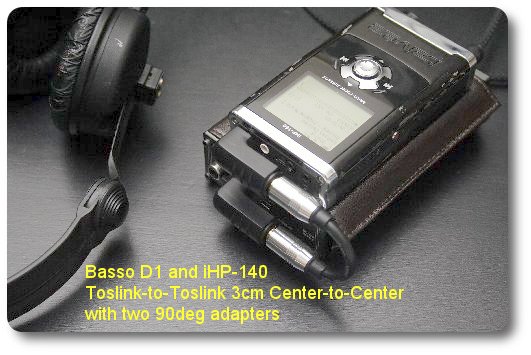

Headroom Micro Portable 2007 and iHP-140 Toslink to Toslink 2.5cm with shells and two 90deg adaptersHeadroom Micro Portable 2007 and iHP-140 Toslink to Toslink 2.5cm with shells and two 90deg adapters90deg Toslink to MiniPlug black and white

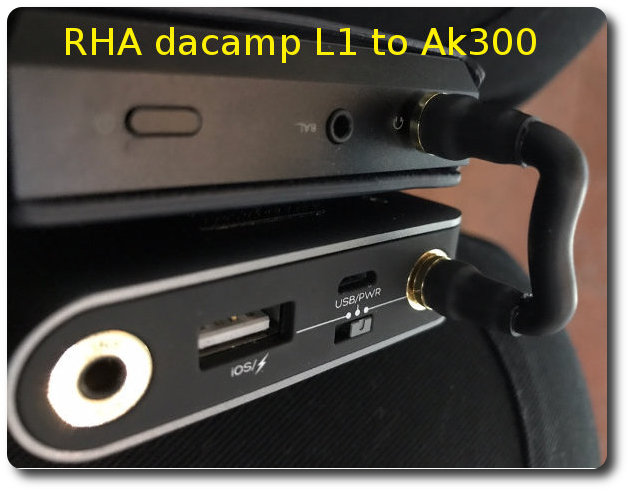

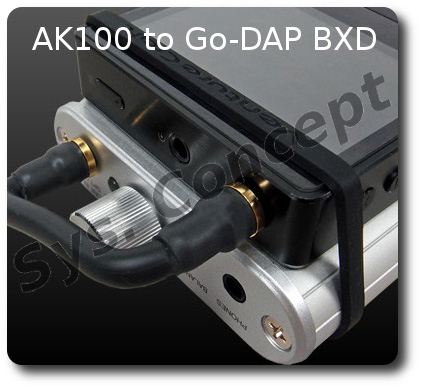

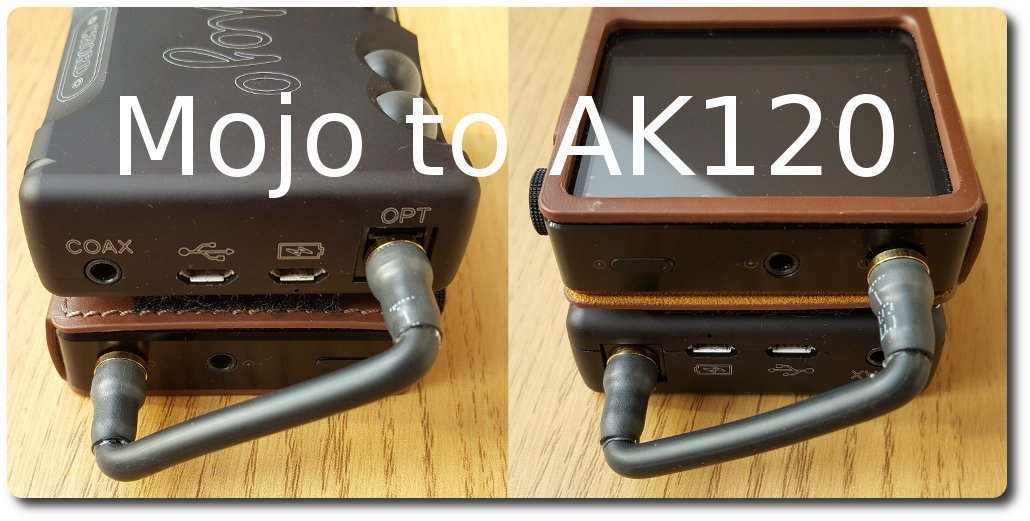

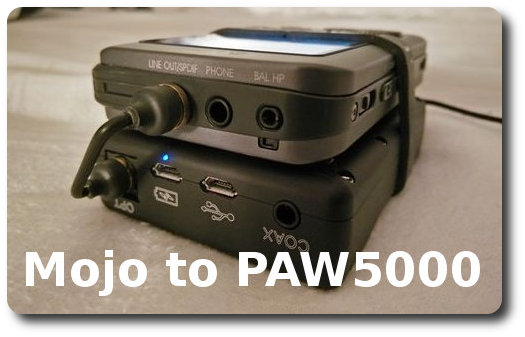

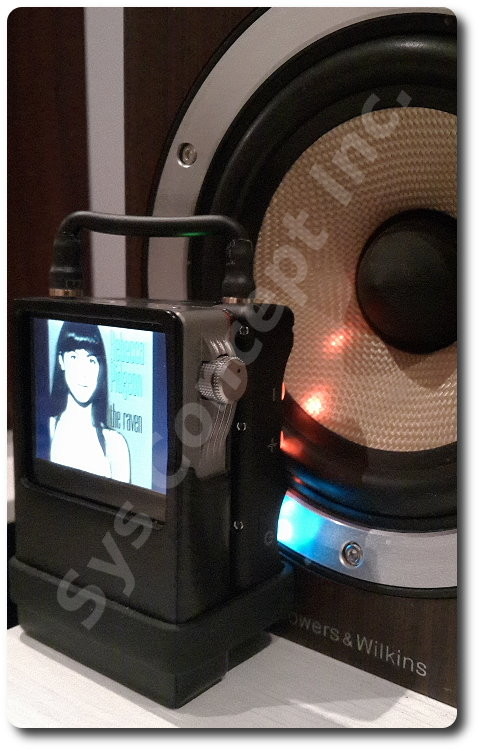

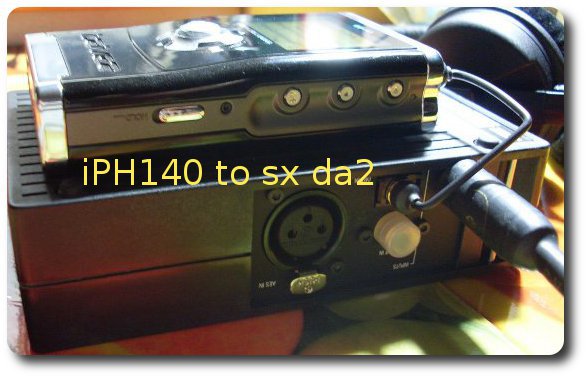

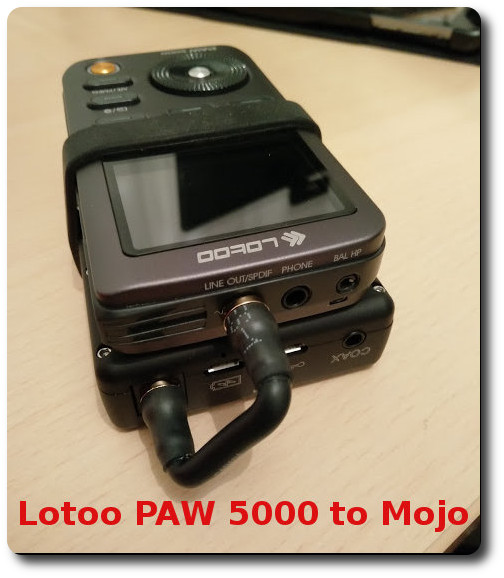

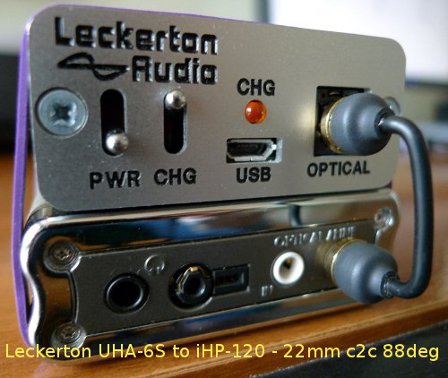

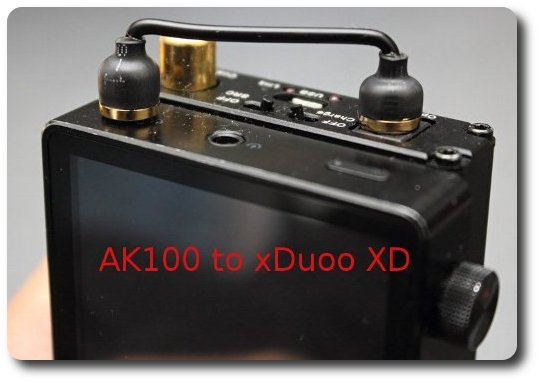

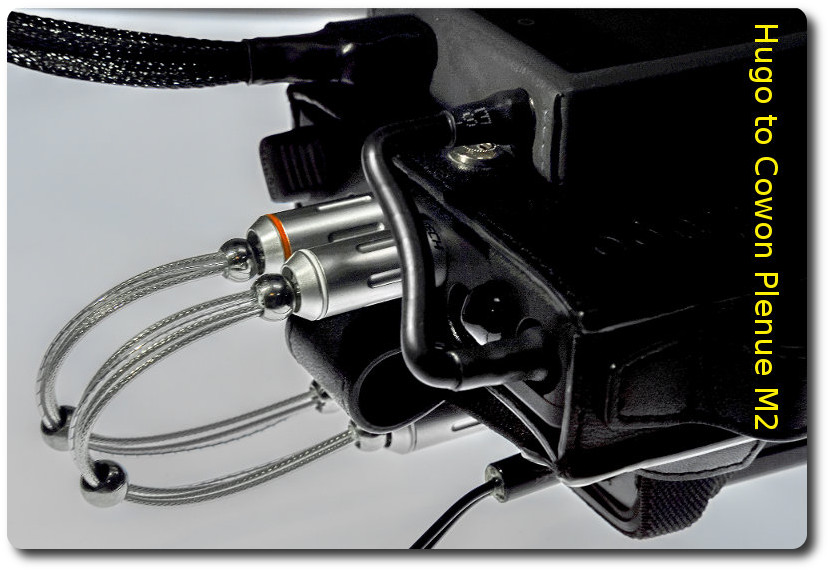

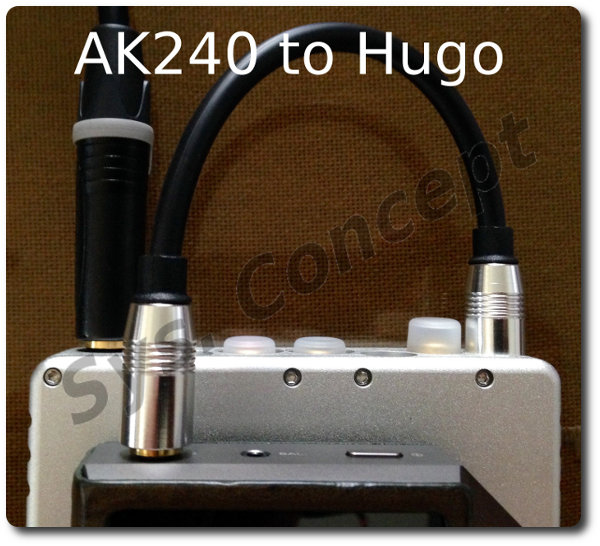

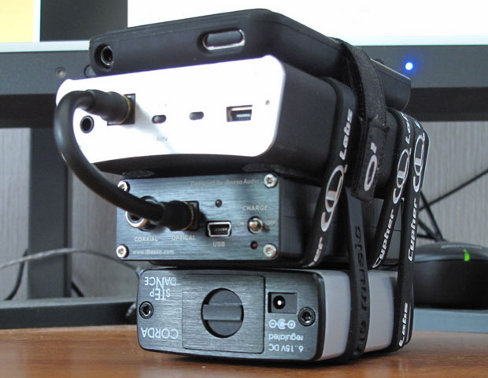

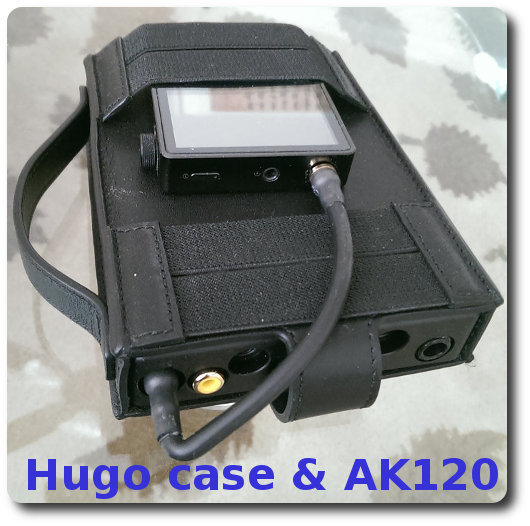

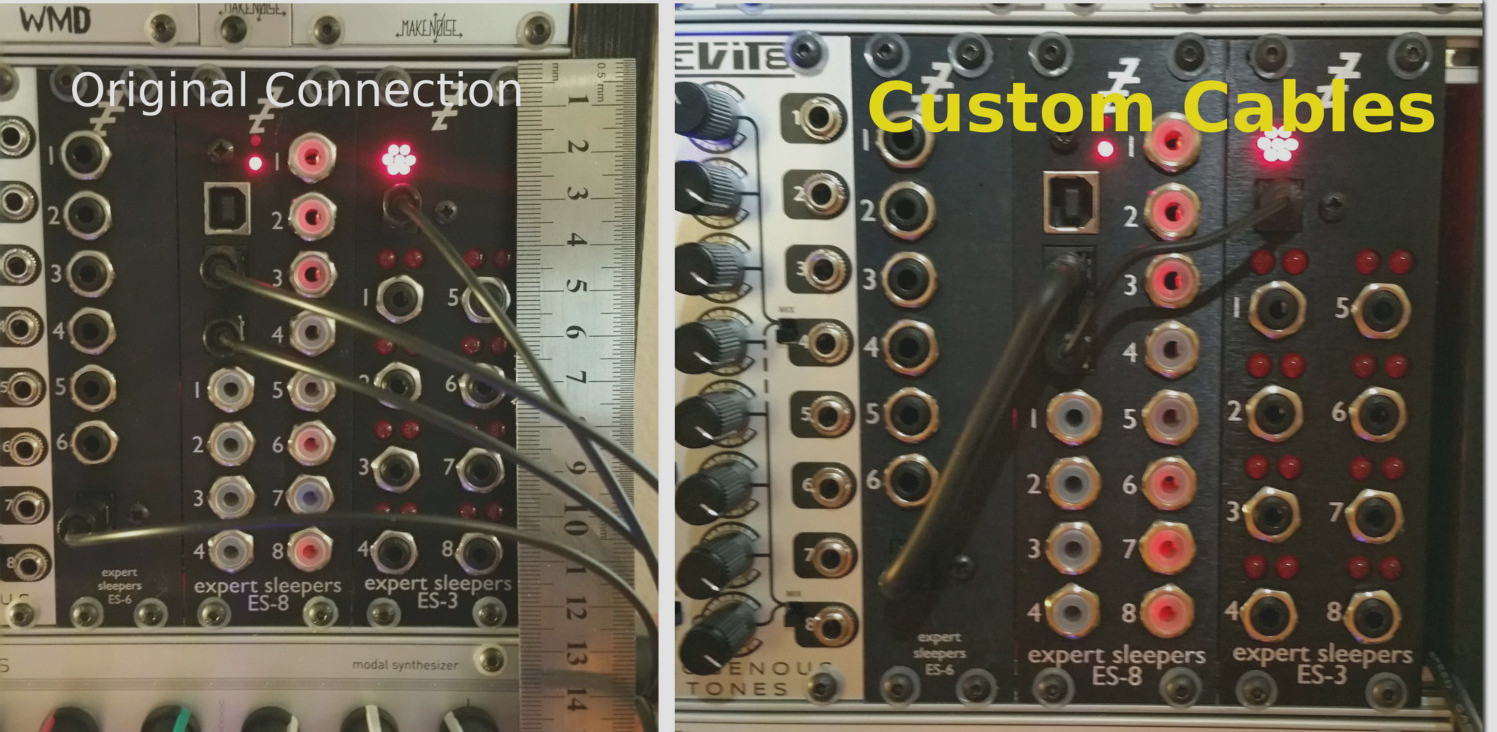

CIO-MB to   Custom Toslink to Toslink Leckerton UHA-6s to iHP120AK100 to xDuoo XD        iHP140 to SX DA2  Hugo to AK120 Hugo to AK240  Hugo to AK240  AK120 to MyST1866 Hugo to AK240 7.5in long Tosink to MiniPlug Cable  AK100 to Go-DAP BXD 4.2cm Center to Center  AK120 to Chord Mojo Mojo to AK120  Mojo to PAW 5000 Lotoo PAW 5000 to Chord Mojo Chord Mojo to AK120 2.2cm c2c 90deg. Hugo in case with AK120Hugo to Cowon Plenue M2 RHA dacamp L1 to AK300 RME expert sleepers ES
